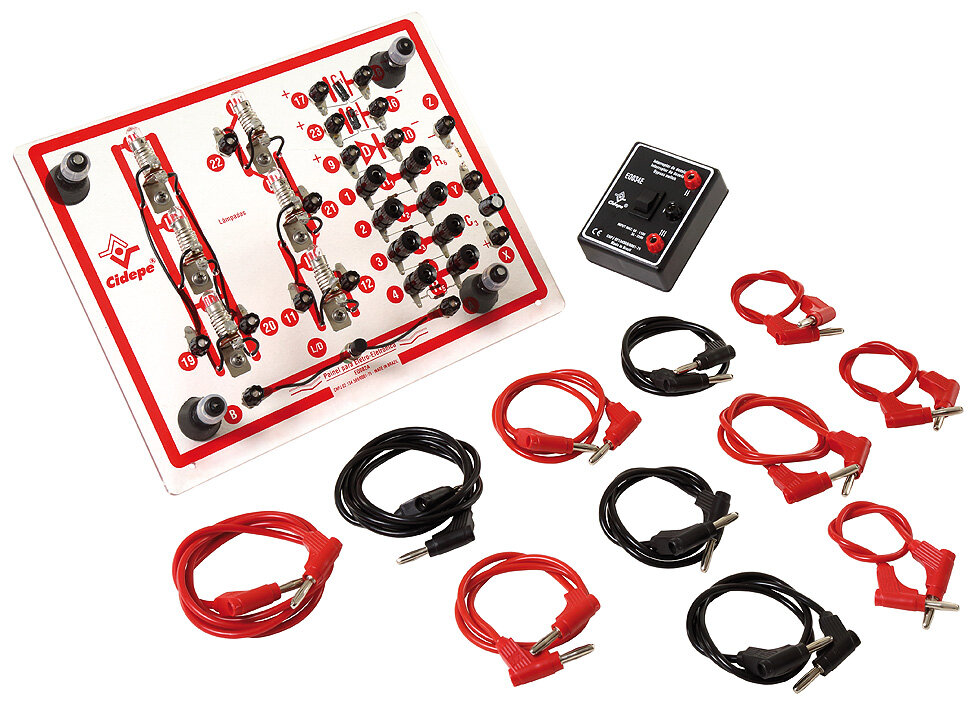

Electro-electronic association panel with bypass switch for 0 to 30 V source and multimeters

Code: EQ082A

Assemble project
1082.092A_5_1
1082.048_1
1082.044M1_1
1082.044L1_1
1082.044K1_1
1082.044J1_1
1082.044I1_1
1082.044H1_1
1082.044G1_1
1082.044F1_1
1082.044E1_1
1082.044D1_1
1082.044C1_1

Function

Intended for experimental study, physics laboratory and carrying out physics experiments on: Electricity. Measuring the potential difference between two points in a DC circuit. Measuring the intensity of electric current in DC circuits. Associations of lamps in series and parallel. Measurements in mixed circuits and electric power. The function of a fuse, the Joule effect. Ohm's law. Associations of electrical resistances (resistors). Identification of a non-ohmic resistor. The electrical resistance offered by a diode and its polarization. The association of capacitors in parallel. Association of capacitors in series. Charging and discharging the capacitor in a series RC circuit. Kirchhoff's laws of loops and nodes, etc. Note: Does not include the 0 to 30 VDC source and multimeters.


Assemble project

Print

Main experiments (visual example)

  • The measurement of ddp between two points of a DC circuit 1082.044G1
  • The measurement of electric current intensity in DC circuits 1082.044H1
  • The combinations of lamps in series and in parallel 1082.044C1
  • The function of a fuse, Joule effect 1082.044D1
  • Color code in the characterization of a resistor electrical resistance 1082.048
  • Ohm´s law 1082.044E1
  • Combinations of electrical resistances resistors 1082.044F1
  • Measurements in mixed circuits and electric power 1082.092A_5
  • The identification of a non-ohmic resistor 1082.044I1
  • The electrical resistance offered by a diode and its polarization 1082.044L1
  • Combination of capacitors in series 1082.044K1
  • The combination of capacitors in parallel 1082.044J1
  • Charging and discharging of the capacitor in an RC series circuit 1082.067A
  • Kirchhoff´s mesh and node laws 1082.044M1
